BT Bar
The BT 24V bar in polycarbonate ensures greater safety for users.
The standard version with 7.3 ± 0.5w/meter for places with high luminosity needs.

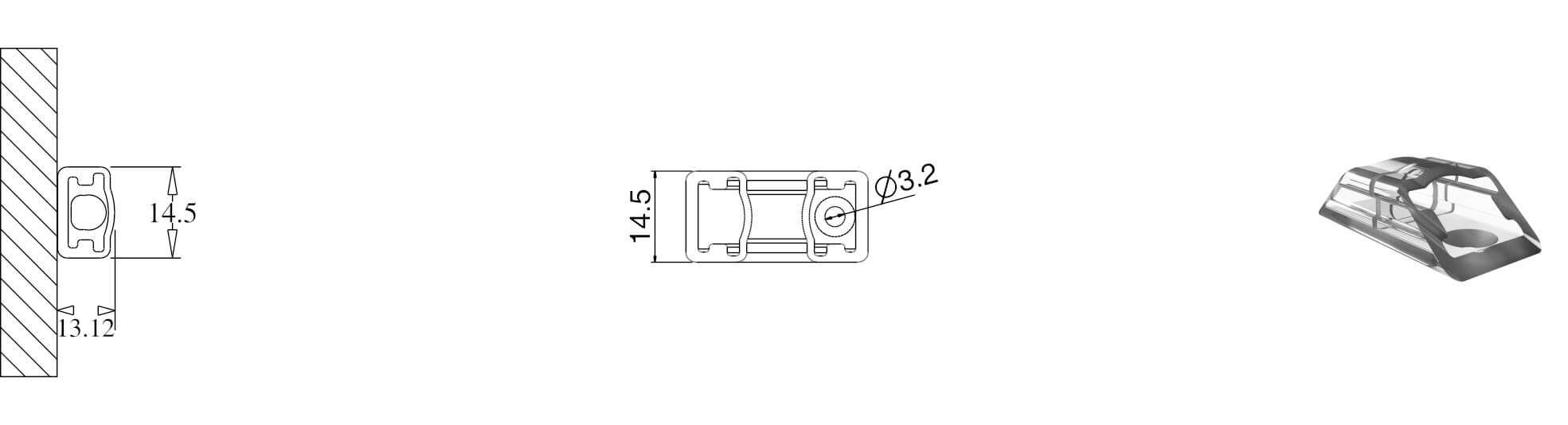

Simple installation with the application of fixture clips or embedded directly on the surface.
Margin of the color temperature 3 SDCM having as reference the center of the MacAdam ellipse centered on the curve of the black body according to ANSI C78.377: 2011.
The LEDs comply the EN62471 eye safety classified in Risk Group 1.
Polycarbonate lens Wonderlite® PC-110U, in two versions, transparent (clear) and diffuse (frost), meets food rule, food contact FDA 21CFR 177.1580 and European rule (EU) No 10/2011.
Flexibility of sizes, 9cm to 200cm.
Sizes
Technical Features - BT Bar
Light Technical Data
Use:
Color Temperature:
01/02/21/22/31/32/04/23/24/33/34/05/25/26/27/35/36/01/82/83/84/85/91/
CRI:
1/
Cover:
1/2/
No results
¹ Luminosity depreciation based on L70.
² Beam angle: 50% of maximum luminosity
³ Field angle: 10% of maximum luminosity
⁴ Luminous flux ± 7.5%
⁵ Other color temperatures available uppon request
Last update: 2020-02-05. Datasheet v.: 1.54
Specifications subject to change without notice.
