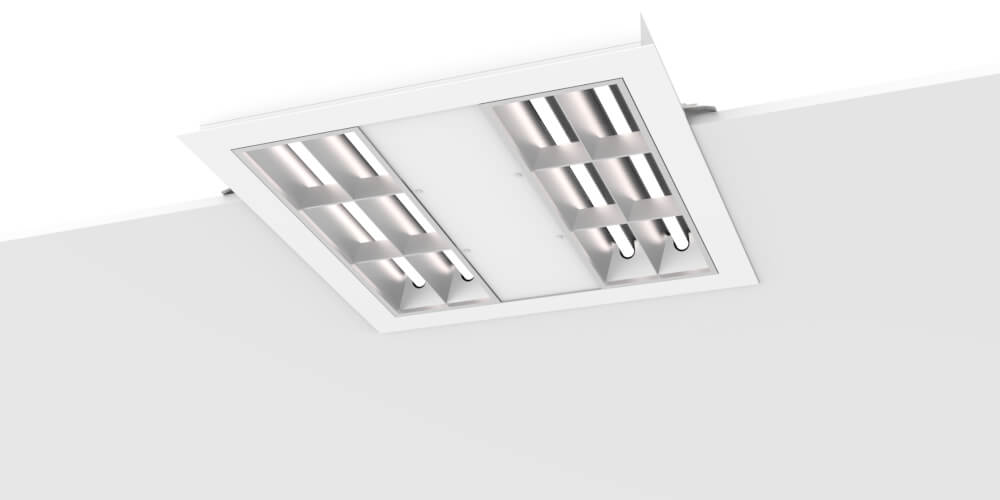

Dualtop 4x60

Reflective grid frame features 7 configuration types (1x60, 2x60, 4x60, 1x120, 2x120, 1x150, 2x150).
DualTop fixture, standalone for mounting embedded in modular ceilings and protruding mounting, uses the latest LED technology to provide energy savings.
Excellent energy efficiency and low maintenance with a highly polished aluminium reflector grid.
Color temperature margin of 3 SDCM having as reference the center of the ellipse of MacAdam according to ANSI C78.377:2011.
LEDs meet the Eye Safety standard EN62471 classified in Risk Group 1.

Dualtop 4x60
technical drawing Dualtop 4x60

Technical Features - Dualtop 4x60

Light Technical Data

Use:




Color Temperature:



CRI:

Cover:

Reference

Description

Flux (Lm) ⁴

Eff. (Lm/W)

Color Temp. (K) ⁵

Color

CRI

Lens type

LDT

Datasheet

No results

¹ Luminosity depreciation based on L70.

² Beam angle: 50% of maximum luminosity

³ Field angle: 10% of maximum luminosity

⁴ Luminous flux ± 7.5%

⁵ Other color temperatures available uppon request

Last update: 2020-01-21. Datasheet v.: 1.42

Specifications subject to change without notice.
