CCT 24V Bar PK50 ECO

The CCT Bar PK50 ECO was specially developed to light meat and standard frozen food cases and reduce electricity consumption.
The infrared remote allows selecting the desired color temperature – PINK and/or 5000K – and adjusting the light intensity of the bar, by selecting one of the levels: off, minimum brightness (20%), medium brightness (50%) and maximum brightness (100%).
We have a great flexibility of sizes, between 10 and 240 cm, allowing to adapt the composition of sizes and luminosity to each project.
The installation of the bars is facilitated by the possibility of using individual bars of various sizes and/or joining several bars in a continuous line. It is possible to interconnect bars directly up to a maximum length of 6 meters.
The color temperature range of 3 SDCM is based on the center of the MacAdam ellipse according to ANSI C78.377:2011.
The LEDs comply with the Eye safety EN62471 standard classified in Risk Group 1.
The Wonderlite® PC-110U polycarbonate bar lens meets FDA 21CFR 177.1580 food contact food safety standards and European (EU) No. 10/2011.
Energy class according to EU regulation 2019/2015.

Sizes

CCT 24V Bar PK50 ECO
technical drawing CCT 24V Bar PK50 ECO

Technical Features - CCT 24V Bar PK50 ECO

Light Technical Data

Use:




CRI:


Cover:


Reference

Description

Class

Flux (Lm) ⁴

Eff. (Lm/W)

Color Temp. (K) ⁵

Color

CRI

Lens type

LDT

Datasheet

No results

¹ Luminosity depreciation based on L70.

² Beam angle: 50% of maximum luminosity

³ Field angle: 10% of maximum luminosity

⁴ Luminous flux ± 7.5%

⁵ Other color temperatures available uppon request

Last update: 2023-06-15. Datasheet v.: 1.2

Specifications subject to change without notice.

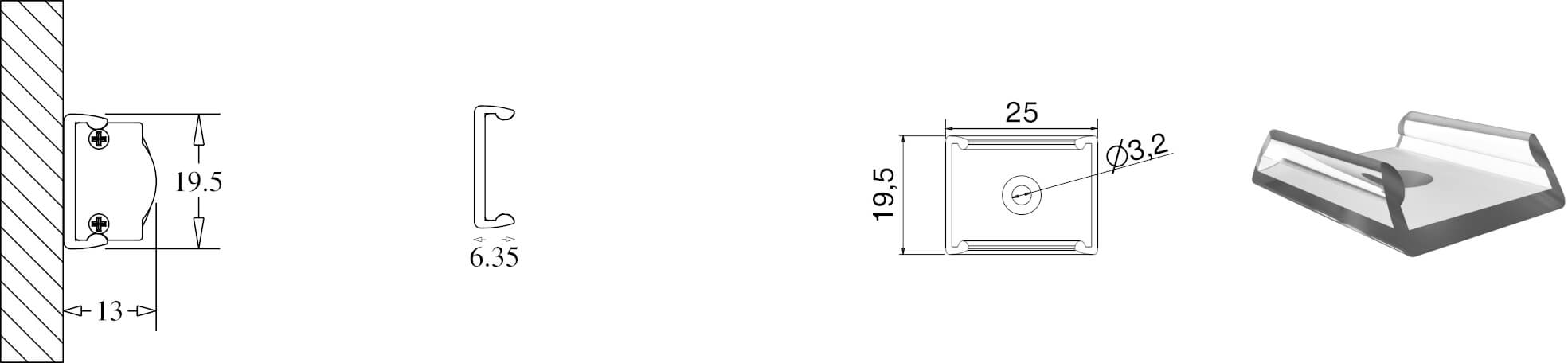

180º Clip with 45º base

+ info

180º fix clip

+ info

45º fix clip

+ info

Rotating clip

+ info

180º PVC fixing bracket

+ info

45º PVC fixing bracket

+ info

Corner PVC fixing bracket

+ info

180º fixing bracket - Polycarbonate

+ info

Fixing bracket - Policarbonate

+ info

Magnetic clip - Polycarbonate

+ info
